?Product overview characteristic

The 15kV/630A shielded rear connector product is made of high-quality raw materials by layered injection molding, which is suitable for ring network cabinets, box-type substations, cable branch box, etc. With the front connector, multi-branch power supply is realized, and the electrical performance of the product is superior to the national standard. It is convenient to install and forms a fully sealed and fully shielded structure after installation, which is safe, beautiful and superior in performance.

?Characteristic

• The problem of electric field stress concentration at that high-voltage connection and the fracture of the cable out shielding lay can be well solved;

• Adopt high-quality EPDM raw materials, which has excellent corona resistance, free discharge resistance and weather resistance;

• Fully insulated, fully sealed and fully shielded.

?Model description

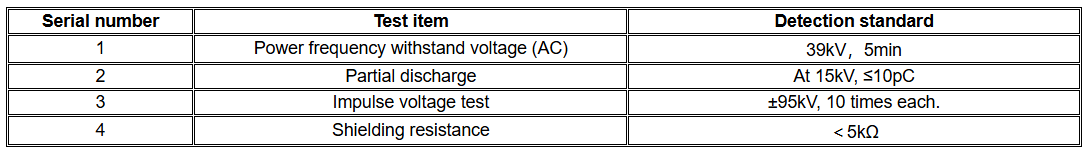

?Main electrical performance

?Standard

GB/T 12706.4  IEC60502-4  DIN 47636   EN50181

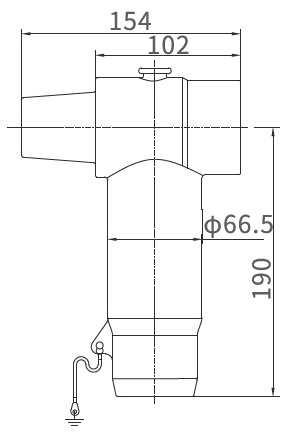

?Overall dimensions and pictures
