?Overview

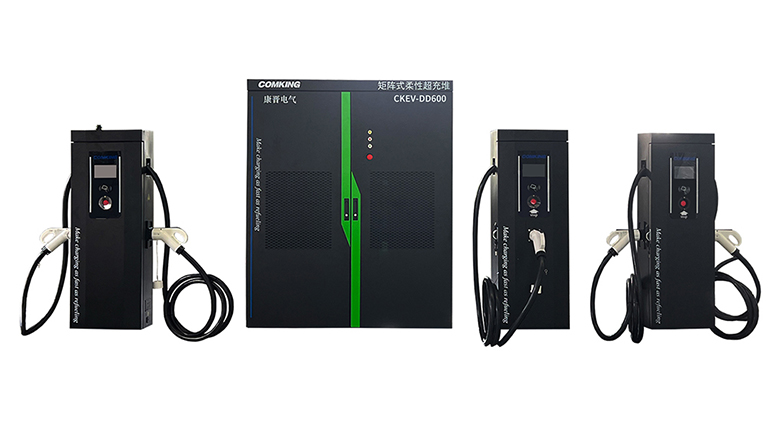

The CKEV-DD600 matrix type flexible ultra-fast charger provides direct current power for electric vehicles, offering a user-friendly human-machine interface with corresponding control, billing, deduction, communication functions, and protection features. This system integrates charging detection, charging control, management, inquiry, display, and communication, achieving intelligent control over the entire charging process. The ultra-fast charger adopts a modular cabinet and charging terminal architecture, with the modular cabinet covering 360~480kW, and one modular cabinet can support multiple fast charging terminals and one ultra-fast charging terminal.

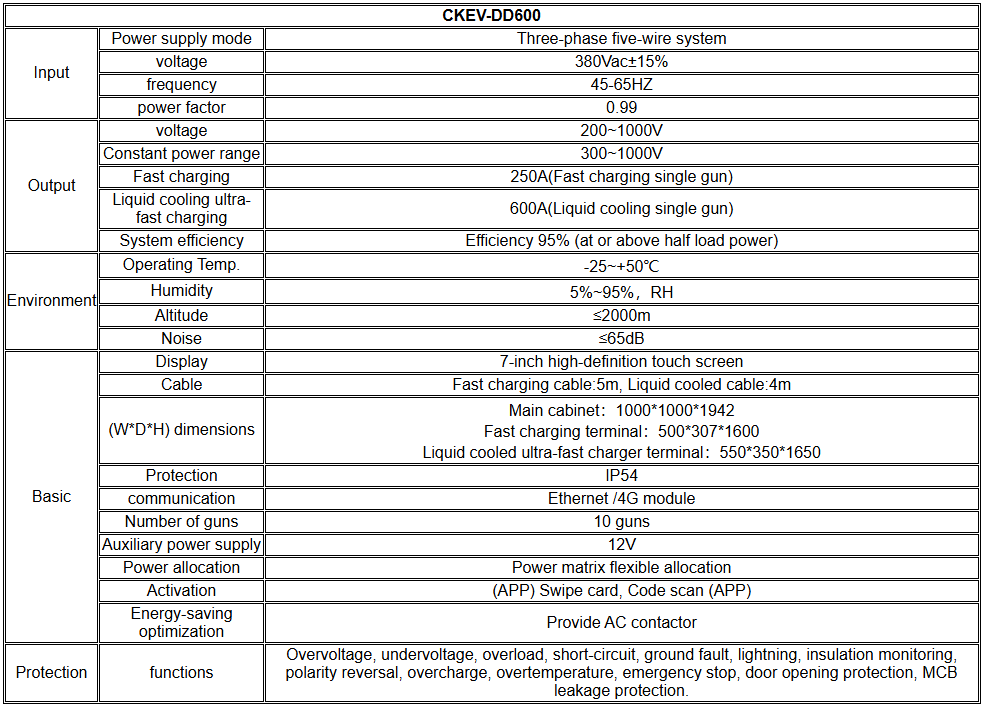

?Technical Parameter

?Product Features

Cost reduction and efficiency improvement: Can be fully charged in 10 minutes, reducing charging costs, shortening logistics delivery time, and lowering energy consumption.

Multiple protection: with functions such as overload, overvoltage, undervoltage, short circuit protection, etc.

Intelligent Control: The system integrates charging detection, charging control, management, inquiry, display, and communication into one.

Easy to maintain: Damaged modules can be quickly replaced, reducing maintenance costs and time.
