?Overview
The CK-NLPL-14 Standard Module is a battery cell module unit primarily integrated in Industrial and Commercial Energy Storage Cabinets and Grid-Side Energy Storage Containers. Featuring a standardized modular design with uniform specifications across modules, it facilitates installation, maintenance, and scaled production. Utilizing air cooling technology with optimized airflow channels and fan layout, it achieves efficient heat dissipation to rapidly remove thermal energy generated during battery operation, ensuring optimal temperature conditions. Widely applicable in energy storage power stations and electric vehicles, this product effectively enhances battery performance while ensuring system operational stability and reliability.

?Product features

• Supports automatic opening/closing control function for external DC circuit breakers

• Supports standard cluster terminal voltage detection, group terminal current detection, and battery cluster insulation status detection

• Supports AC220V power supply for battery box fans to meet thermal management requirements of battery clusters

• Supports communication control and dry contact control with PCS, compatible with both CAN Communication and RS485 communication protocols

• Supports CAN Communication with slave BMUs using Modbus protocol for information exchange

• Supports AC220V power supply; Provides power supply to master BCMU with configurable power output based on BCMU module quantity

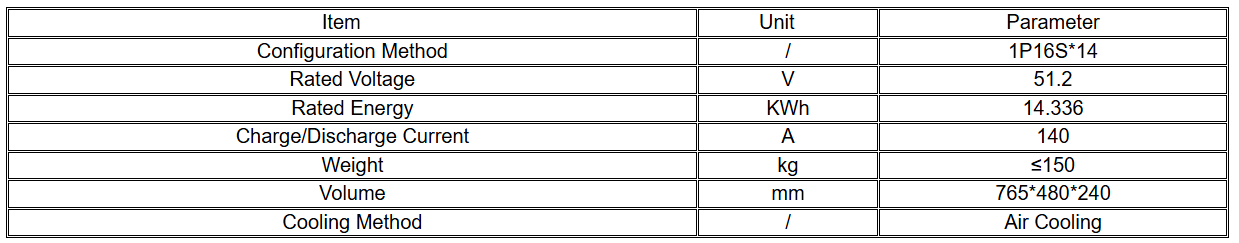

?Technical parameter
