?Overview

The CK-NL-215 smart energy storage cabinet is used to maintain battery temperature, improve performance, and extend battery service life. The liquid cooling system circulates the cooling liquid or heat transfer liquid, transferring heat from the battery module or stack and dissipating it to the external environment. It is widely used for energy storage of power grid, balance the differences between electricity demand and supply, and provide stable backup electricity. In the field of industry, reliable electricity support can be provided for high-power equipment, solving the problem of excessive or unstable electricity load. In remote areas or emergency situations, reliable energy solutions can be provided for post disaster reconstruction and emergency rescue.

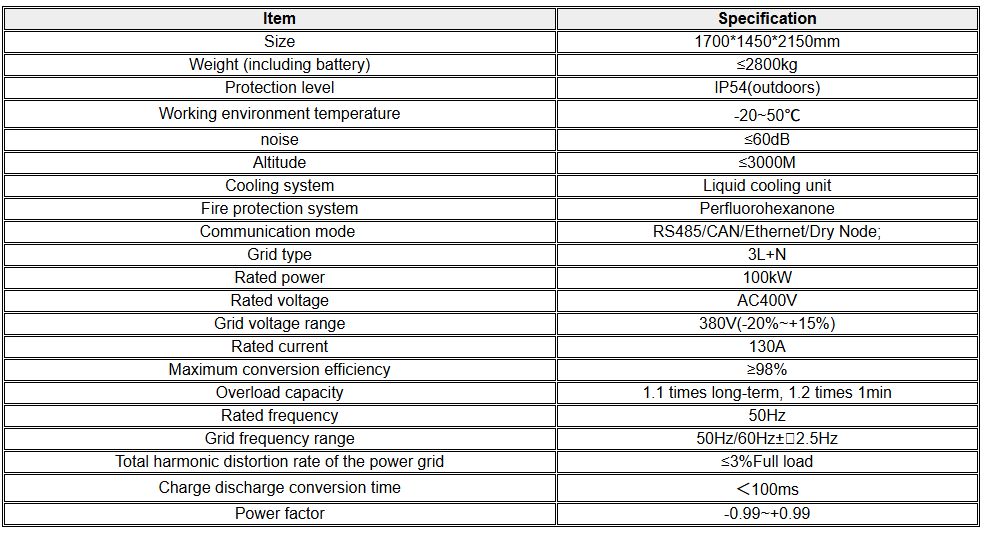

?Technical parameter

?Product features

Strong expansion, supporting multi-machine expansion
Three-phase four-leg topology, reactive power compensation, isolated network independent operation function
Liquid-cooled heat dissipation, reliable operation: efficient heat dissipation system, faster and more uniform heat dissipation
Integrated integration: compact structure design, efficient integration with smaller volume, suitable for different scenarios.
Rated voltage of DC side: 768Vdc
Size: 1700mm*1405mm*2150mm
