?Overview

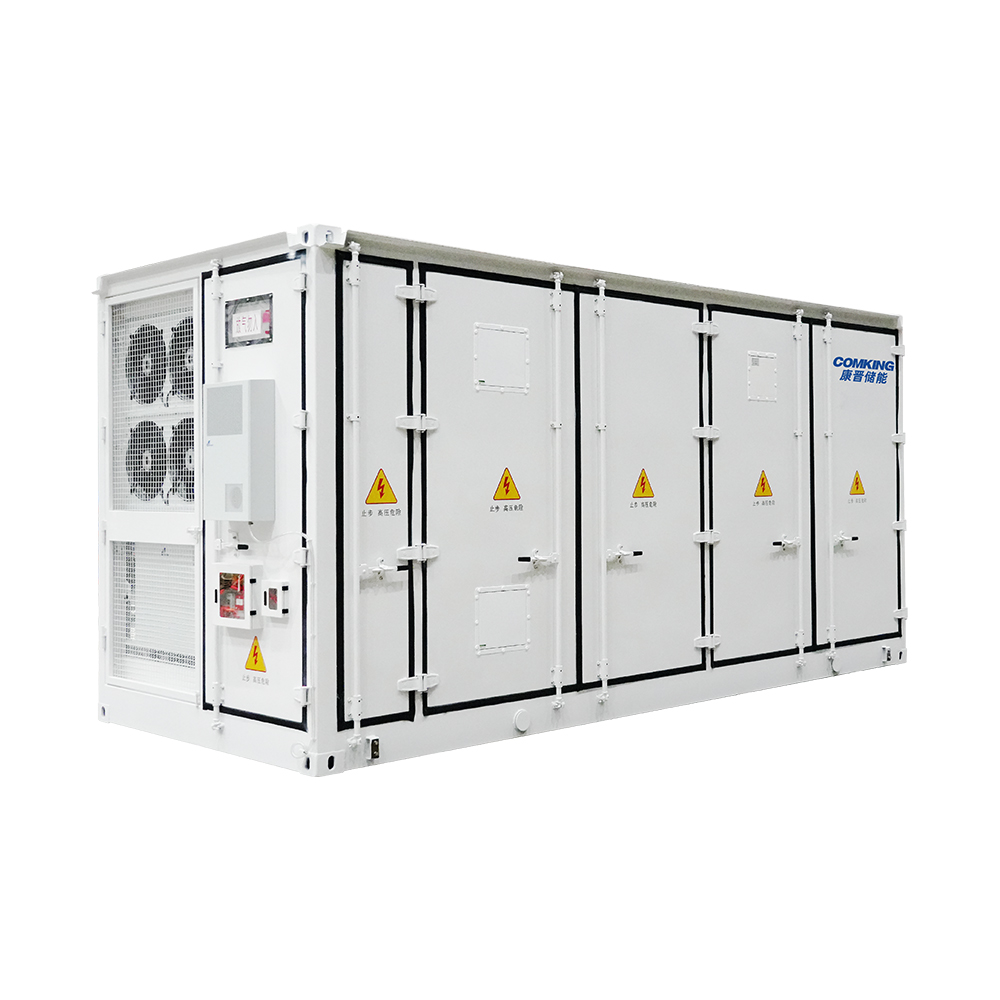

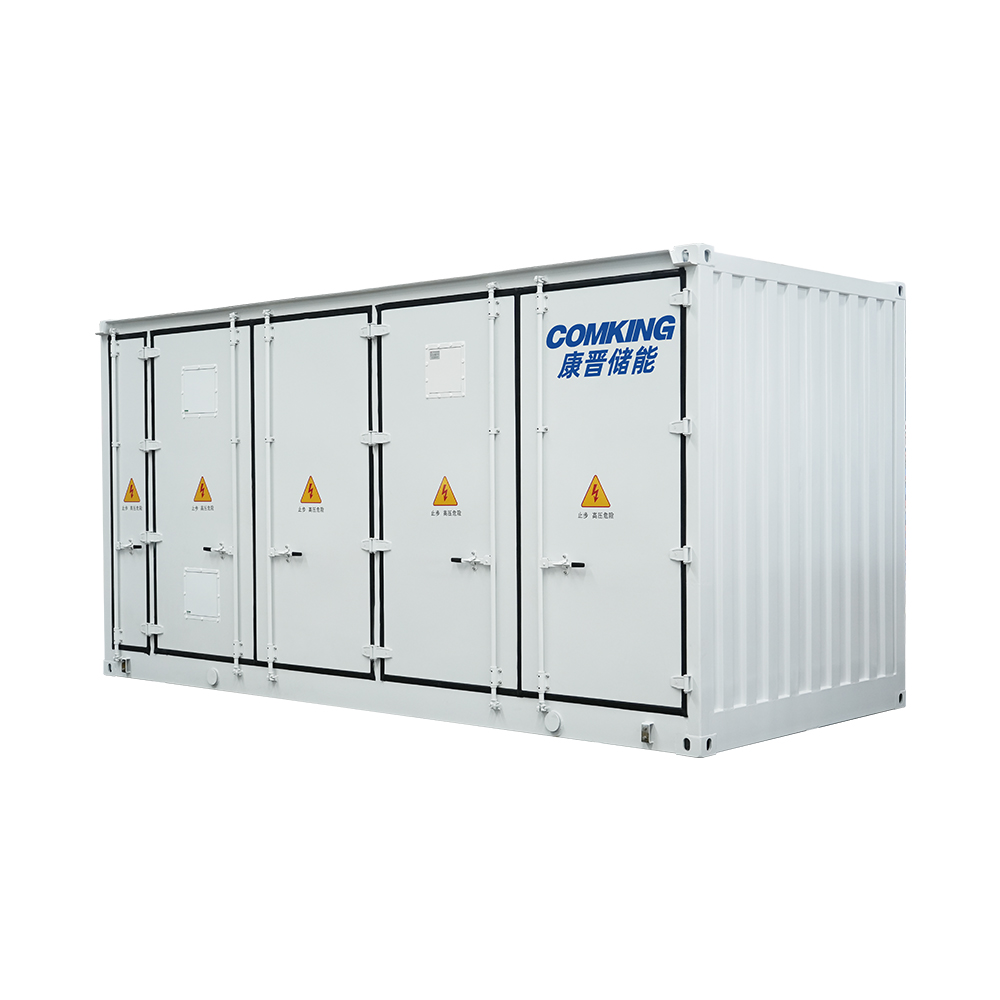

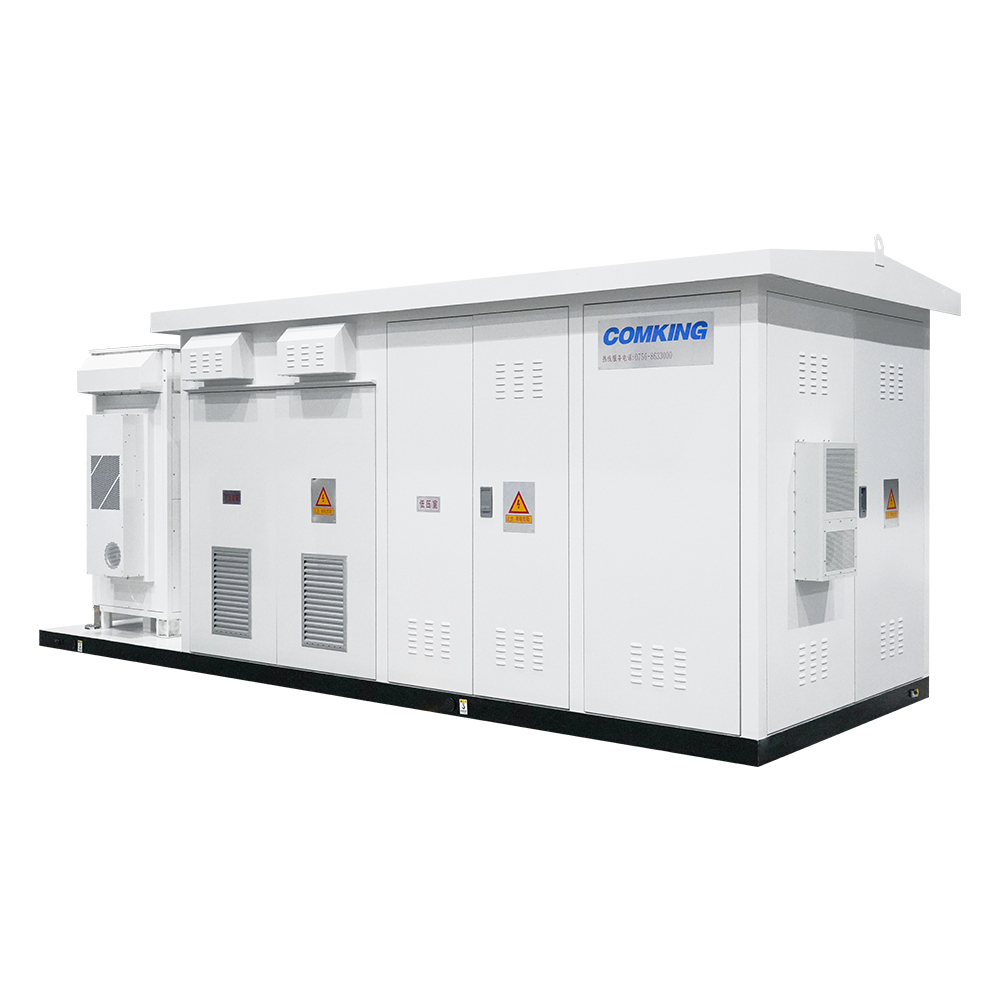

CK-NL-5000 Container Liquid-cooled Energy Storage System are based on standard modules, and integrated with battery management system (BMS), converter cabinet (PCS), power distribution system, thermal management system, fire protection system and intelligent remote management system.

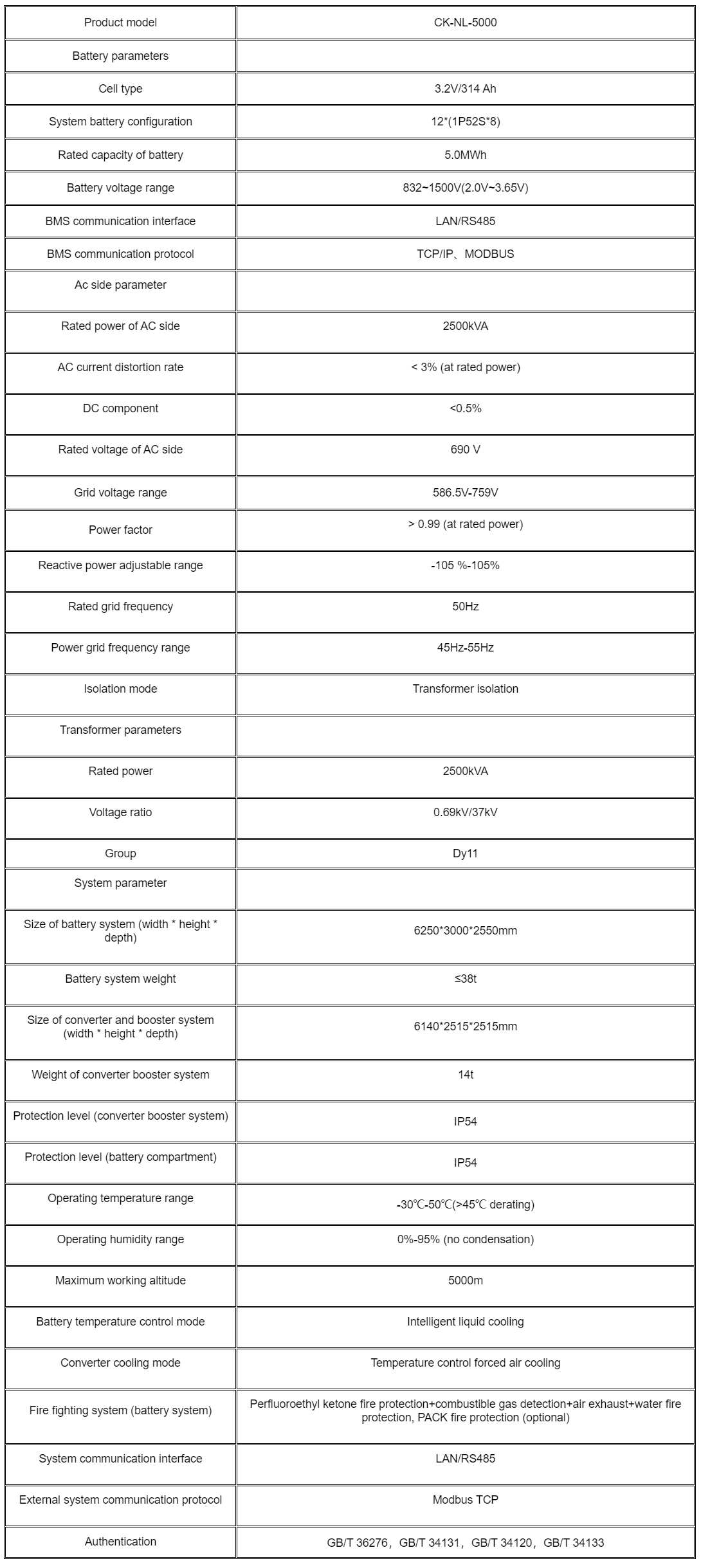

?Technical parameter

?Product features

Cut the cost

Intelligent liquid cooling temperature control reduces the auxiliary power consumption of the system.

Double-layer horizontal battery cluster saves electrical cables.

Pre-installed design, which can be transported by the whole machine without battery installation.

Efficient and flexible

High-efficiency liquid cooling for heat dissipation, synchronous improvement of battery life and system discharge, front single-door design, and back-to-back side-by-side display layout. Joint debugging in advance, reducing on-site system debugging work and quickly connecting to the grid.

Safe and reliable

Battery health monitoring, early warning of sick batteries

Electrical safety management, over-current quick breaking and arc extinguishing protection

The electrical compartment and battery compartment are placed separately to prevent the heat from spreading out of control.

Convenient and rapid transportation

The system can be upgraded with one key, and each unit of the system does not need to be upgraded one by one.

Online intelligent monitoring reduces the number of manual inspections.
